ALWAYS EASIER THAN BEFORE
ELITE COLLABRATIVE ROBOTS
Easy to use, stable and reliable, expert of collabration robots
WHY ELITE ROBOTS
Step into industrial automation world with us
SAFE
Our cobot enjoys a lightweight joint design and weighs 17.5 kg for a 6 kg load, so the robot will cause minor damage to people or objects. In addition, the collision level of the cobot can also be adjusted according to the risk assessment results.
EASE OF USE
Easy to carry, transport and disassemble; the robot’s operating waypoints can be easily edited by simple dragging and dropping; interfaces are open; hardware and software are highly integrated.
FLEXIBILITY
Flexible in multiple aspects such as 360° installation, the spherical working area with ±360° single joint, the lightweight and low-power design, the compact and modular design, etc.
EFFICIENCY
With one cobot for preparation and transfer of the material as well as feeding and blanking of hot-melt machines, our client saved the labor cost of 2 persons and the investment was recovered in just over 8 months.
RICH CONFIGURATION & WIDE APPLICATION
| PARAMETERS | VALUE |
| ROBOT ARM | |
| Footprint | ∅128mm |
| Max Reach | 624mm |
| Max Payload | 3kg |
| Tool Side Io | 2 x DI, 2 x DO, 1 x 24V, 1 x AI, 1 x AO, 1 x RS485 |
| Body Material | Aluminium Alloy |
| System Weight | 13kg |
| Certifications | CE UL CR KCs RoHS |
| Classification | IP54 |
| Number Of Axis | 6 |
| Tool Max Speed | 2.0m/s |
| Power Consumption | 150W (Normal Working Conditions) |
| Installation Method | Any Angle |
| Length Of The Cable | 5.5m |
| Working Temperature | 0-50°C |
| Robot Arm Power Supply | 48V |
| Working Degrees Axis 1 | ±360° |
| Working Degrees Axis 2 | ±360° |
| Working Degrees Axis 3 | 158° |
| Working Degrees Axis 4 | ±360° |
| Working Degrees Axis 5 | ±360° |
| Working Degrees Axis 6 | ±360° |
| Repeatability Precision | +/-0.03mm |
| Working Environment Humidity | |
| CONTROLLER | |
| Ip Protection Class | ERB1K6-220/110, ERB1K0-48/24：IP20 ERB2E1K6-220/110, ERB2E1K0-48/24：IP44 |
| Working Temperature | 0-50°C |
| Control Cabinet Weight | 15Kg |
| Communication Interface | 16 x DI, 20 x DO, 2 x AI, 4 x AO.Ethernet TCP/IP, UDP, ModbusTCP. RS485/RS232, ModbusRTU. Profinet (Slave), EthernetIP (Slave)（Optional, CCLink (Slave)（Optional） |
| Controller Cabinet Size | ERB1K6-220/110：478*380*120mm ERB1K0-48/24：478*380*120mm ERB2E1K6-220/110：505*448*245mm ERB2E1K0-48/24：505*448*245mm |
| Control Cabinet Power Supply | 220/110VAC(M:19-72VDC) |
| Working Environment Humidity | 5% ~ 95%(No Condensation) |
| TEACH PENDANT | |
| Size | 290 x 225 x 118 |
| Net Weight | 1.8Kg |
| Resolution | 1280*800 |
| Ip Protection Class | IP65 |
| Length Of The Cable | 5.5m |
| Working Temperature | 0-50°C |
| Working Environment Humidity | 5% ~ 95%(No Condensation) |

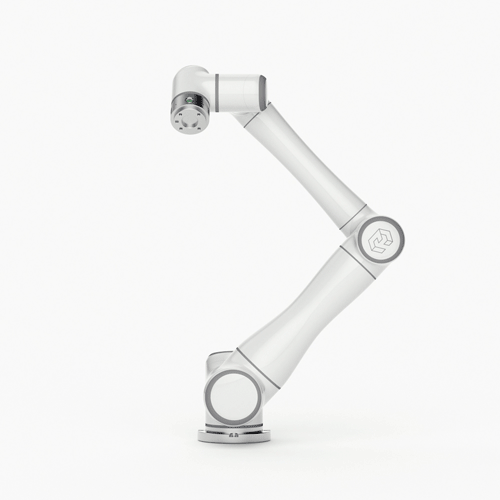

| PARAMETERS | VALUE |
| ROBOT ARM | |
| Footprint | ∅150mm |
| Max Reach | 914mm |
| Max Payload | 6kg |
| Tool Side Io | 2 x DI, 2 x DO, 1 x 24V, 1 x AI, 1 x AO, 1 x RS485 |
| Body Material | Aluminium Alloy |
| System Weight | 17.5kg |
| Certifications | CE UL CR KCs RoHS |
| Classification | IP54 |
| Number Of Axis | 6 |
| Tool Max Speed | 2.8m/s |
| Power Consumption | 250W (Normal Working Conditions) |
| Installation Method | Any Angle |
| Length Of The Cable | 5.5m |
| Working Temperature | 0-50°C |
| Robot Arm Power Supply | 48V |
| Working Degrees Axis 1 | ±360° |
| Working Degrees Axis 2 | ±360° |
| Working Degrees Axis 3 | 158° |
| Working Degrees Axis 4 | ±360° |
| Working Degrees Axis 5 | ±360° |
| Working Degrees Axis 6 | ±360° |
| Repeatability Precision | +/-0.03mm |
| Working Environment Humidity | |
| CONTROLLER | |
| Ip Protection Class | ERB1K6-220/110, ERB1K0-48/24：IP20 ERB2E1K6-220/110, ERB2E1K0-48/24：IP44 |
| Working Temperature | 0-50°C |
| Control Cabinet Weight | 15Kg |
| Communication Interface | 16 x DI, 20 x DO, 2 x AI, 4 x AO.Ethernet TCP/IP, UDP, ModbusTCP. RS485/RS232, ModbusRTU. Profinet (Slave), EthernetIP (Slave)（Optional, CCLink (Slave)（Optional） |
| Controller Cabinet Size | ERB1K6-220/110：478*380*120mm ERB1K0-48/24：478*380*120mm ERB2E1K6-220/110：505*448*245mm ERB2E1K0-48/24：505*448*245mm |
| Control Cabinet Power Supply | 220/110VAC(M:19-72VDC) |
| Working Environment Humidity | 5% ~ 95%(No Condensation) |
| TEACH PENDANT | |
| Size | 290 x 225 x 118 |
| Net Weight | 1.8Kg |
| Resolution | 1280*800 |
| Ip Protection Class | IP65 |
| Length Of The Cable | 5.5m |
| Working Temperature | 0-50°C |
| Working Environment Humidity | 5% ~ 95%(No Condensation) |

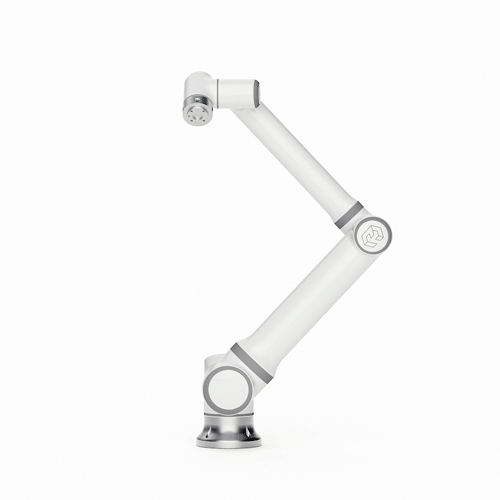

| PARAMETERS | VALUE |
| ROBOT ARM | |
| Footprint | ∅200mm |
| Max Reach | 1304mm |
| Max Payload | 12kg |
| Tool Side Io | 2 x DI, 2 x DO, 1 x 24V, 1 x AI, 1 x AO, 1 x RS485 |
| Body Material | Aluminium Alloy |
| System Weight | 33.5kg |
| Certifications | CE UL CR KCs RoHS |
| Classification | IP54 |
| Number Of Axis | 6 |
| Tool Max Speed | 3.2m/s |
| Power Consumption | 500W (Normal Working Conditions) |
| Installation Method | Any Angle |
| Length Of The Cable | 5.5 m |
| Working Temperature | 0-50°C |
| Robot Arm Power Supply | 48V |
| Working Degrees Axis 1 | ±360° |
| Working Degrees Axis 2 | ±360° |
| Working Degrees Axis 3 | 158° |
| Working Degrees Axis 4 | ±360° |
| Working Degrees Axis 5 | ±360° |
| Working Degrees Axis 6 | ±360° |
| Repeatability Precision | +/-0.05mm |
| Working Environment Humidity | |
| CONTROLLER | |
| Ip Protection Class | ERB3K2-220/110, ERB2K0-48/24：IP20 ERB2E2K0-220/110, ERB2E2K0-48/24: IP44 |
| Working Temperature | 0-50°C |
| Control Cabinet Weight | 17Kg |
| Communication Interface | 16 x DI, 20 x DO, 2 x AI, 4 x AO.Ethernet TCP/IP, UDP, ModbusTCP. RS485/RS232, ModbusRTU. Profinet (Slave)，EthernetIP (Slave)（Optional）,CCLink (Slave)（Optional） |
| Controller Cabinet Size | ERB3K2-220/110：478*380*138mm ERB2K0-48/24：478*380*138mm ERB2E2K0-220/110：505*448*245mm ERB2E2K0-48/24：505*448*245mm |
| Control Cabinet Power Supply | 220/110VAC(M:19-72VDC) |
| Working Environment Humidity | 5% ~ 95%(No Condensation) |
| TEACH PENDANT | |
| Size | 290 x 225 x 118 |
| Net Weight | 1.8Kg |
| Resolution | 1280*800 |
| Ip Protection Class | IP65 |
| Length Of The Cable | 5.5m |
| Working Temperature | 0-50°C |
| Working Environment Humidity | 5% ~ 95%(No Condensation) |
Download Brochure | ELITE ROBOTS EC63
Download Brochure | ELITE ROBOTS EC66
Download Brochure | ELITE ROBOTS CS612
WANT TO FIND OUT MORE?
Contact Us
From palletizing to assembly, from inspection to welding, Elite Robots’ reliable, flexible and cost-effective cobots are boosting the efficiency and the bottom-line of thousands of companies of all sizes.
Contact us now to find out more.
